# Looking Glass 65" Light Field Display

{% embed url="<https://www.youtube.com/watch?v=bUbN51fQZ5U>" %}
Looking Glass 65" Unboxing Video
{% endembed %}

Follow the **Hardware Setup Guide** that came with your Looking Glass 65". Download a copy here:

{% file src="<https://content.gitbook.com/content/PuCaeVAli72TiclYlEG5/blobs/1CnUTqXM0YRVcIJhdV5w/LG65%20Setup%20+%20Safety%20+%20Wall%20Mount%20Guide.pdf>" %}
Looking Glass 65" Safety and Wall Mounting Guide.
{% endfile %}

{% hint style="success" %} <mark style="color:green;">**Looking Glass Bridge, Looking Glass Studio, and some demo applications are pre-installed and ready to use on PCs purchased directly from Looking Glass.**</mark>
{% endhint %}

## What's in the Box:

* 1x Looking Glass 65" with desktop stand attached
* Power cables (regionally-specific)&#x20;
* 2x DisplayPort cables without latches - 71" / 180cm&#x20;
* 1x USB 3.0 A to B cable - 71" / 180cm&#x20;
* 2x microfiber cleaning cloth&#x20;
* 1x M4 Hex key&#x20;
* 1x M5 Hex key&#x20;
* 1x custom-molded aluminum hard carrying case&#x20;
* NUC13 PC 4080GPU with a secondary 15.6" touchscreen monitor for app control, wireless keyboard and mouse set, Leap Motion controller (PC Bundle Only)&#x20;

{% hint style="info" %}
Clean your Looking Glass 65" only with the included microfiber cloth.&#x20;

Do not clean with other cleaning agents or rubbing alcohol as this will damage the front surface of the display.
{% endhint %}

## Minimum Specification Requirements&#x20;

For best performance, your PC must meet the following minimum recommended specs:&#x20;

* 9th Gen i7 CPU or equivalent&#x20;
* Min. 16GB RAM&#x20;
* Min. 256GB SSD storage&#x20;
* RTX 3090 or equivalent (Note: graphics card must support 2x DisplayPort and output 7680 x 4320 resolution)&#x20;

## Software

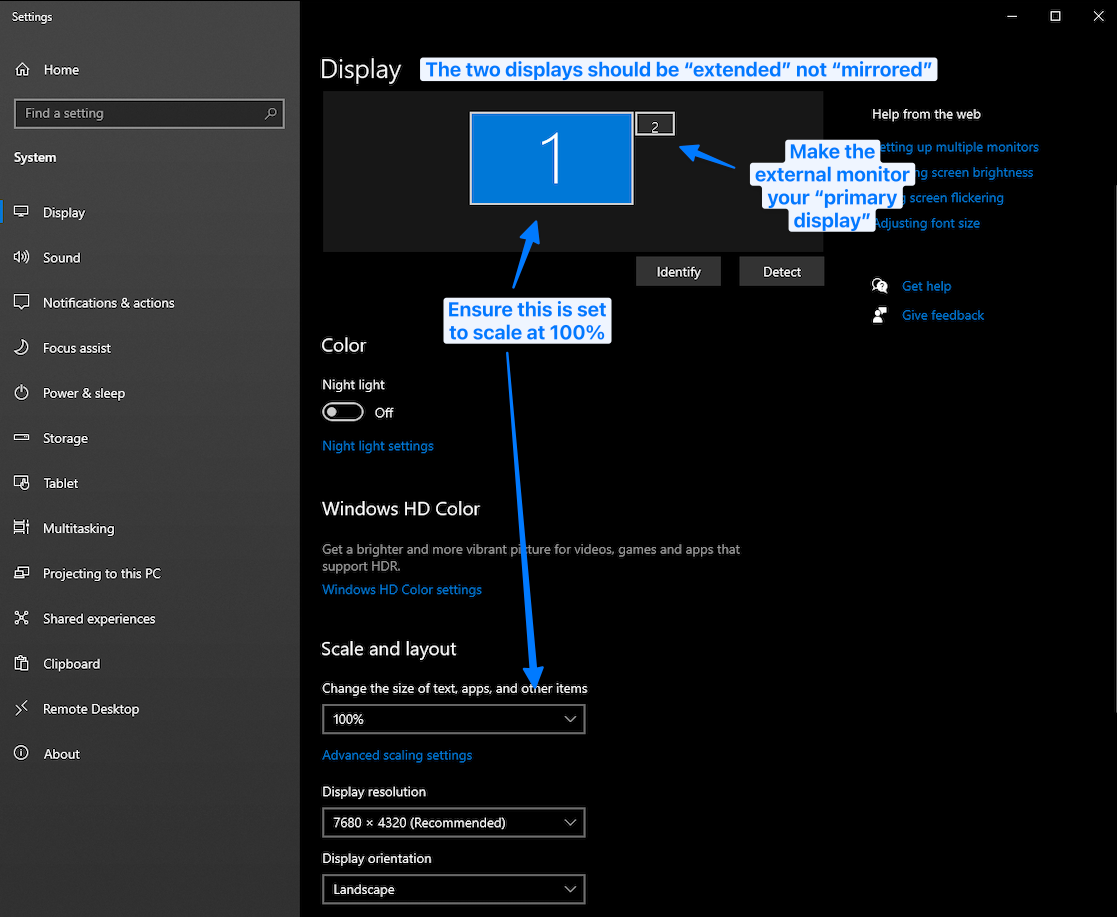

### Display Settings & Configuration&#x20;

<div align="center"><figure><img src="https://content.gitbook.com/content/PuCaeVAli72TiclYlEG5/blobs/sIh3cXE9N3U1XbLuuvlg/CleanShot%202023-01-06%20at%2014.30.58.png" alt=""><figcaption></figcaption></figure></div>

When setting up your Looking Glass 65" display alongside your secondary monitor (recommended) to use as the UI screen, ensure the following:&#x20;

* The Looking Glass 65" and secondary monitor should be extended, not mirrored.&#x20;
* The Looking Glass 65" should be scaled at 100%&#x20;
* The secondary monitor should be set as your "primary display"

This setup will allow for you to seamlessly control your applications and content from the secondary display with the holographic content running on your Looking Glass 65".&#x20;

### Software

### [Looking Glass Bridge](https://lookingglassfactory.com/software/looking-glass-bridge)

Looking Glass Bridge facilitates communication between your computer and any connected Looking Glass devices and is required for Looking Glass applications and development tools. \
Download Looking Glass Bridge [**here**](https://lookingglassfactory.com/software/looking-glass-bridge).&#x20;

### Test your setup

This simple test can be run to ensure that hardware is connected and that the software is installed and configured:

{% embed url="<https://codesandbox.io/embed/hardcore-butterfly-l5o9d?fontsize=14&hidenavigation=1&theme=dark&view=preview>" %}

When the above button is pressed, your Looking Glass 65" should show a 3D image of Shawn from Looking Glass. \
To close this image, move your mouse over to the Looking Glass and click the ESC key on the keyboard.&#x20;

{% hint style="danger" %}
If the hologram appears with diagonal lines, there is an error loading the calibration data. Please retry the setup steps above to ensure it is properly configured, double-check that all cables are plugged in and that your monitor settings are correct.
{% endhint %}

### [Looking Glass Studio](https://lookingglassfactory.com/software/looking-glass-studio)

Looking Glass Studio is the hologram companion app for your Looking Glass 65". \
\
With it, you can import holograms from a variety of sources and make minor edits to any hologram you create.

* Importing hologram data from a variety of sources (iPhone Portrait mode photos, light field photosets, RGB-D photos & videos, etc)
* Editing and framing your holographic content
* Exporting and sharing holograms with others

More information about Looking Glass Studio can be found [**here**](https://lfdocs.lookingglassfactory.com/software/looking-glass-studio)**.** &#x20;

### Leap Motion (optional accessory)

Some applications are controllable via the Leap Motion hand-tracking hardware (included in the PC bundle). To use these features, [**download and install**](https://developer.leapmotion.com/gemini-v5-preview) the V5 (Gemini) version of the Desktop SDK.

{% hint style="success" %}
`🤏🏼`<mark style="color:green;">**Ultraleap software is already installed on computers purchased directly from Looking Glass.**</mark>
{% endhint %}

Once the Leap Motion Controller is plugged in and the Ultraleap Gemini tracking is installed, launch the Ultraleap sensor setup and load the Ultraleap Tracking Software.

### Download the Quilts to run on Looking Glass Studio\*&#x20;

{% hint style="success" %} <mark style="color:green;">**Quilts are pre-loaded into Looking Glass Studio on PC bundles purchased directly from Looking Glass.**</mark>
{% endhint %}

* Download T-Rex quilt [here](https://www.dropbox.com/s/l4q5z27wv26u1tb/trex8k.mp4?dl=0).&#x20;
* Download Golden Ticket (Close-up) quilt [here](https://www.dropbox.com/s/xj685oljkgfez7i/golden-ticket-8k-closeup.jpeg?dl=0).
* Download Golden Ticket quilt [here](https://www.dropbox.com/s/fmr42r8j6b8k4dm/golden-ticket-8k.jpeg?dl=0).&#x20;
* Download Bond (Close-up) quilt [here](https://www.dropbox.com/s/lj238qxozlc4mm7/Bond_closeup_4K8K_quilt90.jpg?dl=0). &#x20;
* Download Bond quilt [here](https://www.dropbox.com/s/ugikgel8bxt5nuf/Bond_4K8K_quilt90.jpg?dl=0).
* Download Toy Shelf quilt [here](https://www.dropbox.com/s/w86o6bmtlkrvr8h/toyshelf-8k.jpg?dl=0). &#x20;
* Download Retail Shoe quilt [here](https://drive.google.com/file/d/1nDyF2QmBeJzkmcC9LQjSvNOFbZ3od3-I/view?usp=sharing).

## Featured Applications & Holograms

The following applications demonstrate the features and capabilities of the Looking Glass 65" Display and are **pre-installed on the Looking Glass 65" PC.**&#x20;

### 🛩️ Jet Engine

<figure><img src="https://content.gitbook.com/content/PuCaeVAli72TiclYlEG5/blobs/7p7NDHCbq9EiYmaMhvfz/LKG-65-JetEngine.webp" alt=""><figcaption></figcaption></figure>

{% hint style="success" %}
`🤏🏼` <mark style="color:green;">**Leap Motion-Enabled**</mark>
{% endhint %}

{% hint style="info" %}
[<mark style="color:blue;">**Download Jet Engine**</mark>](https://s3.amazonaws.com/demos.lookingglassfactory.com/Windows/JetEngine.zip)
{% endhint %}

Jet Engine is a CAD representation of complex 3D models. \
Use the gesture-controlled explode view to show and expand complex structures!

#### Gesture Controls:

* Left hand interaction - X-ray through model
* Right hand interaction - Rotate the model
* Both hands together and pulled apart - Explode or Expand view

## Common Troubleshooting Issues&#x20;

<table><thead><tr><th width="233.53682953694704">Issue</th><th width="574">Solution</th></tr></thead><tbody><tr><td>If your PC is not switching on when connected to the Looking Glass 65" Display</td><td><p>When you set up and turn on the PC, avoid having <strong>all</strong> peripherals connected at once. Only have the secondary screen connected. </p><p></p><p>Then, after set up, you can connect all the other accessories. <br>This is to prevent the PC from drawing too much power at once.</p></td></tr><tr><td>If you notice that your demos seem to be running to the left side of the display and there is something wrong with how they look </td><td>Reset the Looking Glass display with the power button on the side.</td></tr><tr><td>If you notice that some media in Looking Glass Studio is running at a slower frame rate </td><td><p>First, ensure that you have Vertical Sync enabled:</p><ol><li>Click the <strong>Start</strong> button or <strong>Windows icon</strong></li><li>Type <strong>NVIDIA Control Panel</strong> into the search bar</li><li>Press <strong>Enter</strong> on your keyboard</li><li>Click <strong>Manage 3D settings</strong></li><li>Under <strong>"I would like to use the following 3D settings"</strong>, scroll down until you see <strong>Vertical Sync</strong></li><li>Select <strong>Vertical Sync</strong> to choose <strong>Force</strong> on from the dropdown menu</li></ol><p>Second, ensure that the graphics card is targeting all the applications that you've installed including the web browser you're using (we recommend Chrome). <br><br>For a detailed breakdown of how to set this for your PC, follow this guide <a href="https://support.ntopology.com/hc/en-us/articles/360043607974-How-to-enable-high-performance-Graphics-Card-settings">here</a>. </p></td></tr><tr><td>If USB-C ports on the back of the 65" PC aren't functioning properly. </td><td>Install the latest <a href="https://www.intel.com/content/www/us/en/download/19509/intel-chipset-device-software-for-nuc9vxqnx-nuc9v7qnx-nuc9i9qnx-nuc9i7qnx-nuc9i5qnx.html">chipset drivers</a> for the Intel compute element. <br>This only applies to the 65" PC purchased from Looking Glass. </td></tr></tbody></table>


---
